P2-HP Portalfräsmaschine
P2HP-2
P2HP-3
P2HP-4

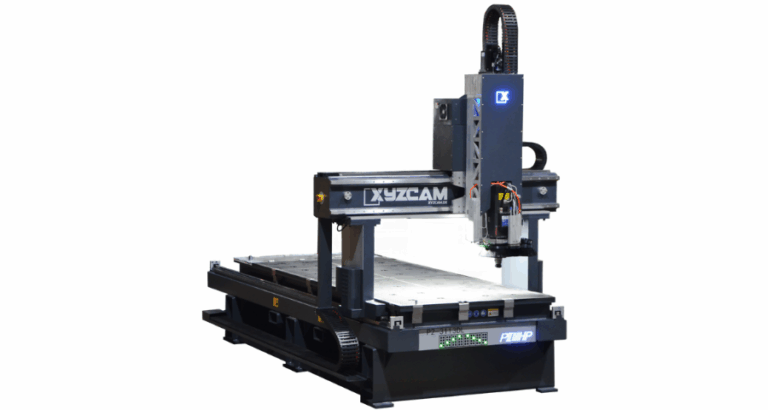

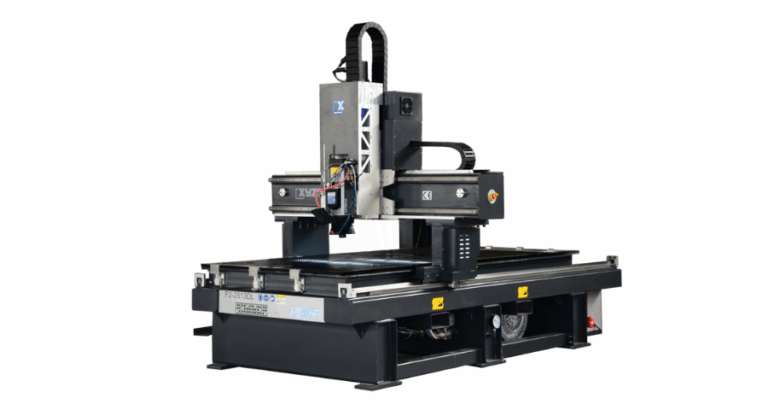

XYZCAM P2 HP-Series - High performance cnc portal milling machine

Our P2-HP is a fast and powerful ATC-CNC system (Automatic Tool Changing). It is a CNC machining solution also for rigid materials with greater material thicknesses in the areas of plastics, aluminum processing and composite materials with high mechanical properties. The P2-HP is intended for industrial use.

Available models:

P2-1325HP, P2-1530HP, P2-2030HP, P2-2040HP

from 89.000 € (excl. VAT)

Inquire now!

Functions

Test
XYZ developed the XYZ-P2 HP as version D with a reinforced steel frame. It offers dynamic rigidity and stability at fast feed rates.
Werkzeugwechsler bei einer XYZCAM P2HP Portalfräsmaschine
XYZ developed the XYZ-P2 HP as version D with a reinforced steel frame. It offers dynamic rigidity and stability at fast feed rates.
CNC Steuerung einer CNC Portalfräse von XYZCAM
We only use the latest and highest quality CNC controls for use in the industrial sector. At the customer's request, we can also deviate from our standard and install your controls.
CNC Portalfräse bei der Bearbeitung von Kunststoff
We only use the latest and highest quality CNC controls for use in the industrial sector. At the customer's request, we can also deviate from our standard and install your controls.
Portalfräse bearbeitet eine Holzplatte
Optional: pneumatically lowerable stops on the X and Y axes
Aufspannplatte für CNC Portalfräse
Optional: all-aluminum work table
iVision Absauganlage - CNC Zubehör
Optional: Ivision suction system
iVision Absauganlage für CNC Fräsen
Optional: Energy-saving combination of suction system (Ivision) and vacuum pump (Busch), which are controlled using G-Code.
Drawing of a customer-specific aluminum processing unit

Properties & Specifications

Features

Specifications

Model

408(1325)

510(1530)

710(2030)

714(2040)

Table Size

1330x2540mm / 52″x100″

1590x3050mm / 62″x120″

2100x3050mm / 82″x120″

2100x4100mm / 82″x160″

X,Y Working Area

1270x2540mm /

4´2〞x 8´4〞/

50″x100″

1524x3048mm /

5´x 10´/

60″x120″

2032x3048mm /

6´8〞x 10´/

80″x120″

2032x4064mm /

6´8〞x 13´4〞/

80″x160″

Z Stroke

304mm/12’’

Table Structure

Vacuum + T slot

Transmission

Helical rack and pinion on X axis Y, ball screw on Z axis

Driving Mode

Heavy duty AC Servo coupling gear reducer

Max Idle Speed

90m/min

Max Working Speed

50m/min

Spindle Motor

High Frequency Air Cooled, 9.0KW/9.5KW ATC (4.5KW, 12.0KW for option)

Working Mode

24000r/min

Working Voltage

AC380V

Tool Magazine

Linear array 8 -10 positions (Taiwan-made carrousel & umbrella type tool magazine)

Command

G Code

Interface

USB, CF Card, Ethernet

Software

Artcam, Type3, Fusion 360, Cut2D, Madcam
